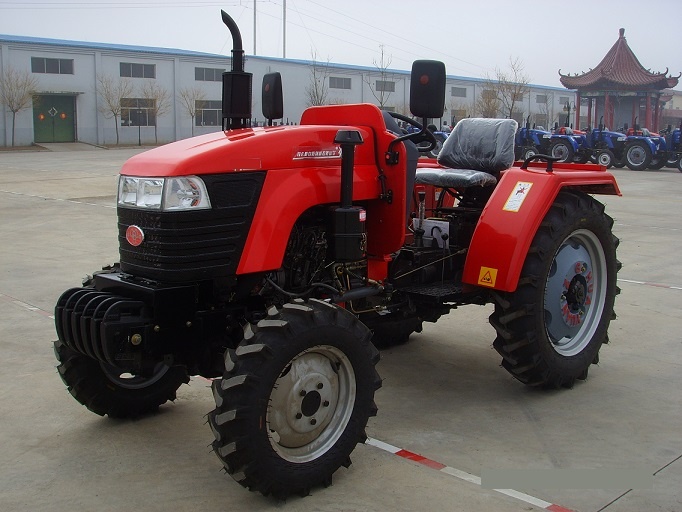

HY354 Wheel Tractor
|
354 wheel tractor |
|
Specifications |
|
||||
|
Machine |
Brand |
/ |
HY |
|
|||
|
|
model |
/ |
354 |
|
|||
|
|
Type of driving |
/ |
4×4 |
|
|||
|
|
Overall size |
mm |
3790×1625×2100 |
|
|||
|
|
Wheel base |
mm |
2010 |
|
|||
|
|
Wheel distance(front ,back) |
mm |
1260/1250-1350 |
|
|||
|
|
Wheel adjust model |
/ |
No adjust |
|
|||
|
|
Min distance to ground |
mm |
320 |
|
|||
|
|
Min operating weight |
kg |
2160 |
|
|||
|
|
Front axle weight/rear axle weight |
kg |
970/1190 |
|
|||
|
|
Counterweight (front /back ) |
kg |
130/110 |
|
|||
|
|
Gear shift(forward/back/crawl) |
/ |
8/2 |
|
|||
|
|
Theoretical speed |
Ⅰ |
rearⅠ |
km/h |
2.02 |
2.82 |
|
|
|
|
Ⅱ |
RearⅡ |
|
3.58 |
11.25 |
|
|
|
|
Ⅲ |
|
|
5.76 |
|
|
|
|
|
Ⅳ |
|
|
7.23 |
|
|
|
|
|
Ⅴ |
|
|
8.09 |
|
|
|
|
|
Ⅵ |
|
|
14.32 |
|
|
|
|
|
Ⅶ |
|
|
23.04 |
|
|
|
|
|
Ⅷ |
|
|
28.87 |
|
|
|
|
Engine with clutch connection Method . |
/ |
Direct coupled |
|
|||
|
|
Start model |
/ |
electrical |
|
|||
|
Engine |
Brand |
/ |
Laidong |
|
|||
|
|
Type |
/ |
Vertical,3 cylinder,water-cooled,4 – stroke |
|
|||
|
|
Model |
/ |
LD4L22BT-93C |
|
|||
|
|
Factory name |
/ |
Huayuan laidong factory |
|
|||
|
|
Inspiration type |
/ |
Nature inspiration |
|
|||
|
|
No of cylinder |
cylinder |
４ |
|
|||
|
|
cylinder diameter×strokes |
mm |
95×105 |
|
|||
|
|
Displacement |
L |
2.156 |
|
|||
|
|
compression ratio |
/ |
18：1 |
|
|||
|
|
Power |
kW |
25.8 |
|
|||
|
|
Speed |
r/min |
2300 |
|
|||
|
|
Fuel injection pump Model |
/ |
Inline mechanical pump / BH4QT90R9 |
|
|||
|
|
fuel spray nozzle model |
/ |
Long and porous PF68S19 |
|
|||
|
|
Air filter model |
/ |
Oil bath ；KM160-07100-01 |
|
|||
|
|
Starter model |
/ |
QDJ152TD |
|
|||
