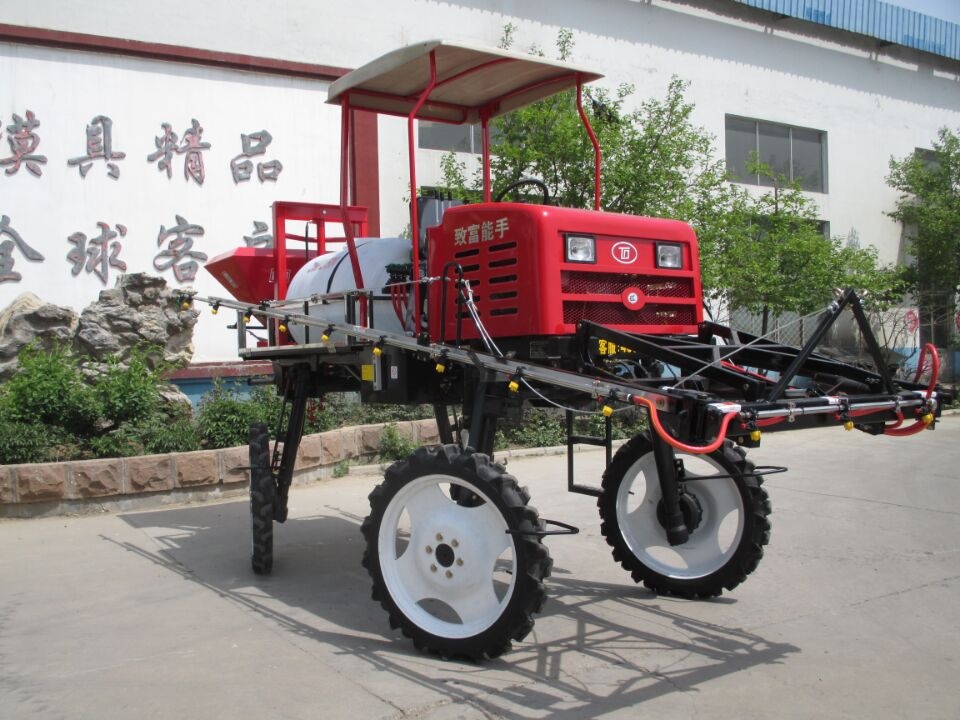

Self Propelled Spray Boom Sprayer-HQPZ500

 1, Self Propelled Spray Boom Sprayer features:

(1)With differential lock, suitable for working in the paddy field.

(2) Four wheel steering and two wheel steering are equipped with together.The four wheel drive is suitable for field work, and the two wheel drive is suitable for walking on the road.

(3)The spreader can be placed flat to the ground, add fertilizer convenient and fast .

(4) There is a jet mixing, do not need return. Jet mixing can make the medicine stirring evenly.

(5) The sprayer is the best quality in the China. Using life is longer .

(6)It Can add the fertilizer device, with hydraulic operation, very convenient and quick !

2,Self Propelled Spray Boom Sprayer specifications :

Machine	Model	HQPZ-500
	Tyre	self-propelled
	Size （mm）	4600*1680*2270
	Weight（KG）	1590
	Spray nozzle （m）	12
	Working pressure of spray rod （MPa）	0.3-0.4
Power	Type	Changchai
	Rated power（KW/rpm)	18-20KW
	Starting	Electric
medical kit	Capacity（L）	500
	Mixed mode	Jet mixing method
Matching nozzle	Mode	fan-shaped
	Number	23
	Cone angle of fog	110
	Single spray （L/min)	1.386/0.4MPa
	interval（mm）	500
Main line number of sprayer		3 forward, 1 backward
Operation rate (mu / h)		60
