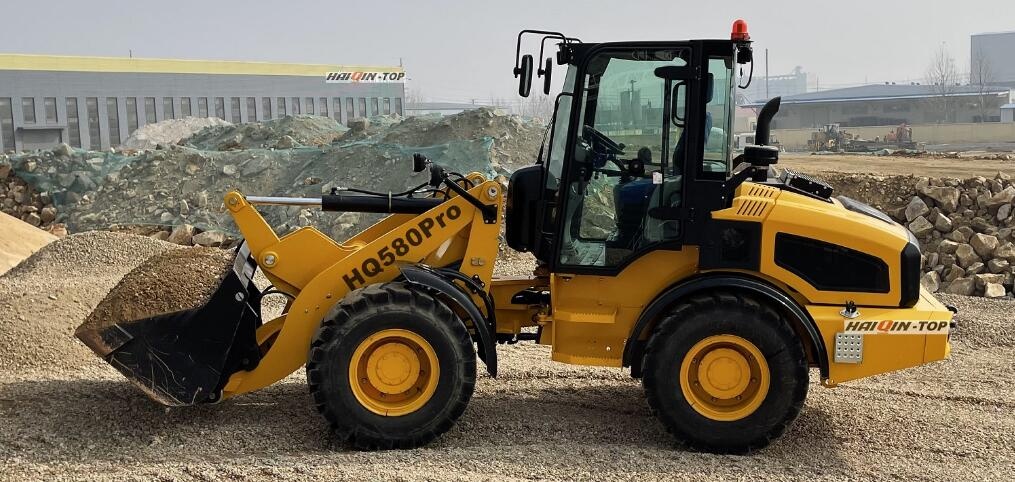

New Strong Wheel loader HQ580Pro
New updated wheel loader HQ580Pro Technical New Features：
1.It is equipped with 3-way hydraulic system as standard. You can add 4 routes,
2.100ml flowing
3. Heraclesloaders H580 with Floating function standard configuration
4. H580 heracles loader Boom shock absorption
5. Centralized lubrication for option
6. Qingdao heraces loader Standard with One button start
7. Connect the computer to check the fault. You can see which connector is broken easily .
8, standard 76 yunnei with electric control
9. Euro 5 xinchai can be selected
10.Heracles h580 loader With big rear view display
11.With import Germany working valve and joystick valve
12.shandong heracles loader With Password lock
13.heracles machinery With new joystick handle
New updated wheel loader HQ580Pro Specifications :
New updated wheel loader HQ580Pro Specifications :
Rated loading:2800kg
Max loading: 3500kg
Operation weight:6170kg
rated bucket capacity:1.2m3
Max. tractive force:≥54KN
Max. breakout force:≥45.4KN
Max. grade ability:30°
H580 heraclesloaders Max. dump height:3300mm
Dump distance:930mm
Overall dimension (LxWxH):6170x2040x2695mm
Min. turning radius:4510mm
EngineModel:Yunei 76kw or XINCHAI EURO 5 Engine
H928 heracles wheel loader Type:Vertical, in-line, water cooled, 4-cylinder, turbo type
Rated power:76KW / 2400rpm
Wheel loader H928 Max. torque:285N.m
Displacment:3.76L
Transmission system:Torque converterZL280
Gearbox mode:Contershaft, power-shift
Gear shift:2 forward (1 high speed, 1 low speed), 1 reverse
Forload H928M loader Max. speed:35km/h
Drive axle:Main reducing spiral,Circular Arc Bevel gear, single stage
Decelerating mode :Single stage planetary type
Wheelbase:2470mm
Track base:1570mm
Min. ground clearance:390mm
Hydraulic system,System working pressure:16Mpa
Boom lifting time:4.8s±0.2s
Total time:9.2s±0.5s
Brake system:Service brake,hydraulic disc brake on 4 wheels
Parking brake:flexible shaft operated external drum
Tyre size:16/70-20
Front tyre pressure:0.22Mpa
Rear tyre pressure:0.18Mpa
