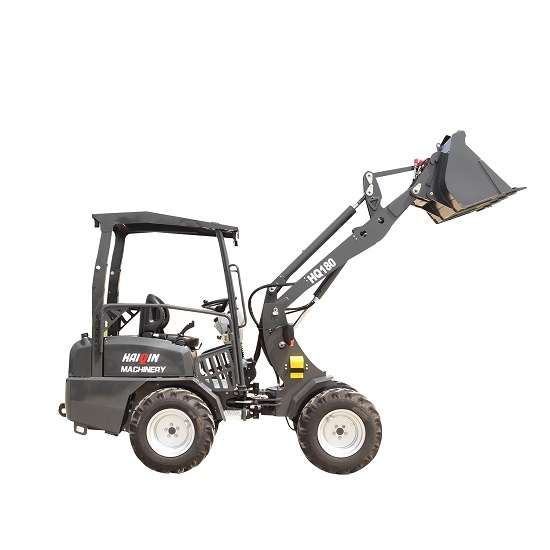

New Generation HQ180 loader with Yanmar Engine
New generation HQ180 loader with Yanmar Engine
Basic Specfications :
HQ180 New updated Functions :
Wet service braking system,
heraclesloaders H180 Electric parking brake,
The engine hood is electronically open on automatically,
Electric proportional multi way valve,

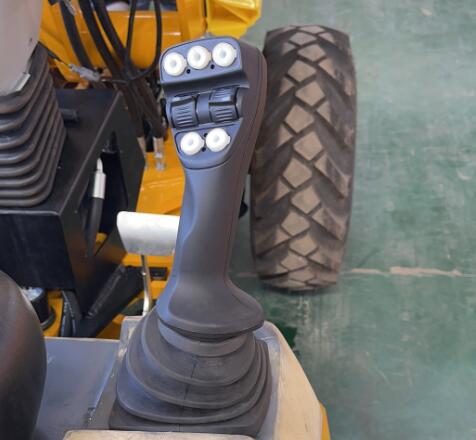

New aleborg style with proportional Joystick handle
H180 heracles loader Electronic fuel pump oil,
RAPTO loader Fuel heating,
Fuel oil water separation,
Low temperature start-up, automatic preheating,
heraclesloaders H180 Emergency stop switch,

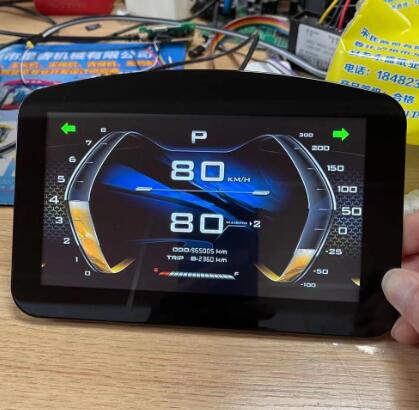

Seven inch high definition waterproof touch meter,
Hydraulic quick change electronic control switching,
heraclesloaders H180 Vehicle can communication,
Automatic fault detection,
qingdao heracles Tire pressure display,
Standard 4-way hydraulic system,
With separate return oil,
New exhaust system,
The noise sound is below 80 decibels,
Special filter for closed system
HOFKNECHT HL1000 loader
Bucket capacity :............ 0.3m3
Bucket capacity :............ 0.3m3
Breakout force:.....20.5KN
Turning radius :...2690mm
Tipping load straight:.......900kg
Full turn tipping load:.....800kg
Hercules loader Straight lift capacity:.....1000kg
Hinge pin height:......2900mm
Total length ( bucket on the ground ) :.... 4030mm
Hercules loader Dump height:........2167mm
Width( with narrow tire ):........1111mm
Engine: ........Yanmar engine ( made in china ) or Original Japan Yanmar engine
heracles machinery h180 Power:....19.6kw
Standard tire ...10.0/75-15.3 ; Option wide tire: 400/60-15.5
Transmission: ......Hydrostatic
Drive type: ..... .Independent wheel motors
H180 heracles Travel speed: ............20-23km/h
Operation weight:..........1980kg.
Note : Specifications and design are subject to change without prior notice.
