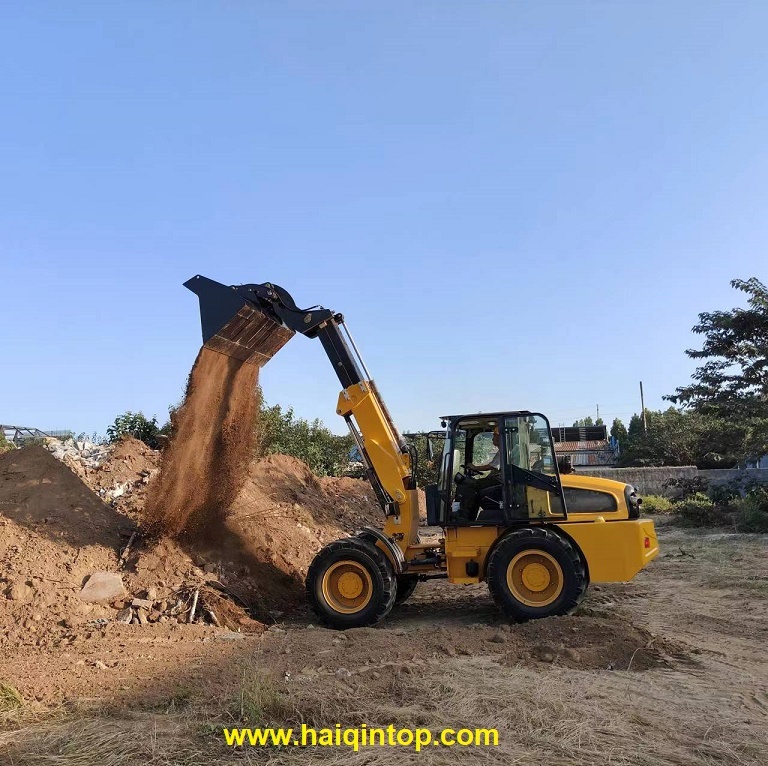

New Telescopic Loader HQ580T
New Telescopic Loader (HQ580T) Product Description:
1.Luxury cabin with wide sight view, with Rops and Fops .
2.Multifunction Joystick control
3.Heraclesloaders H580T Boom floating function
4.Electrical 4 gear rtansmission with top 28km/h speed
5.Torque converter and counter-shaft transmission gearbox-Hyundai technology, assembled separately, higher reliability and easier maintenance,
6.Pilot controlled, fully hydraulic steering system.
7.Heracles telescopic loader H580T Self leveling
8.Hydraulic quick coupling system for many attachments, such as log clamp, pipe clamp, grass fork, plow, etc
9,With Compact design and Steel Counterweight, can lift 3.0 ton easily !
10, Telescopic boom reach 4.5m-5.5m height .
|
Specifications of HQ580T Telescopic Loader: |
|
|
1,Engine Details |
|
|
Model: |
China 76 Engine or Euro III Engine for option |
|
Engine type: |
Vertical, in-line, water cooled, 4-stroke diesel engine |
|
Rated Power: |
76kw |
|
Rated Speed: |
2400 r/p. Min (rpm) |
|
|
|
|
2,Transmission System |
|
|
|
|
|
gearbox model |
Countershaft power-shift |
|
gear shift |
2 forward shift 2 reverse shift |
|
maximum speed |
29km/h |
|
|
|
|
3,Bucket |
|
|
Bucket Capacity: |
1.2-2.0 m3 |
|
Bucket width: |
2060mm |
|
Bucket type: |
Heavy-duty bolt on teeth |
|
Max. Breakout Force: |
90KN |
|
Rated Load: |
3000kg |
|
Operating Weight: |
6300kg |
|
|
|
|
4,Venchiinc telescopic loader Overall Dimensions |
|
|
Overall Length (Bucket on ground position): |
5800mm |
|
Overall Height : |
|
|
(a) Ground to Cab Top: |
2860mm |
|
(b) Dumping Height: |
3150mm |
|
(c) Overall Width: |
2000mm |
|
(d) Telescopic boom maxmium height: |
4500mm |
|
5, Loaderhire heracles loader Operating Specifications |
|
|
Steering System: |
Articulated Frame with hydraulic power steering |
|
|
|
|
Driving System: |
Hydraulic converter |
|
|
|
|
6,TELESCOPIC LOADER Brake System |
|
|
Service Brake: |
Four Wheel Hydraulic spread-shoed brake |
|
Parking Brake: |
Hand operated |
|
|
|
|
7,V250T Telescopic loader Tyre |
|
|
Teleskoplader Radlader Model: |
16/70 _ 20 |
|
|
|
|
8,Wheelbase : |
2350mm |
|
|
|
|
9,Track: |
1500mm |
