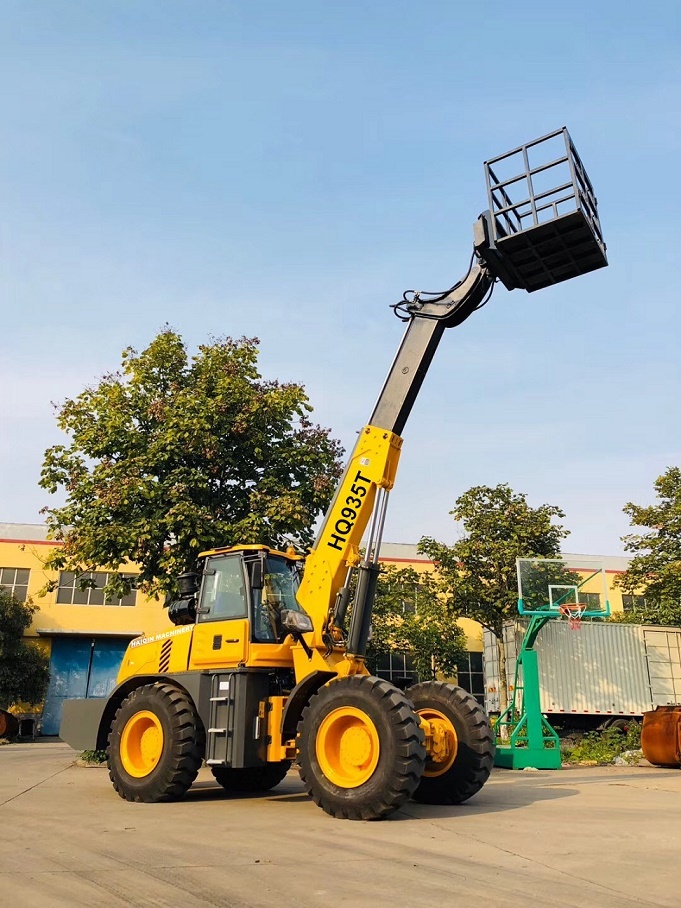

HQ935T Telescopic wheel loader with a 92kw engine, can lift 3500kg easily, the boom can telescopic to 6.2m .

  • Product No.: 21


Large Telescopic loader HQ935T Features:
1.The telescopic boom which can reach 6.5m greatly increase it’s working scope.
2.The articulated structure and axle transmission design makes it powerful and has better pass through ability.
3.The seals, valve & joystick handle are famous oversea products which guarantee that it’s a reliable long lasting machine.
4.Adjustable spring seat and optional air conditioner makes the operating more comfortable.
5.Wide view cabin and two entrance makes the operating convenient and safe.
6.Quick coupling system, mechanic joystick and buttons makes the operating easy and convenient.
7.The rear cover can be opened as a whole part just by your hands, which makes the maintenance much more simple.
Large Telescopic loader HQ935T Main technical specification:
1.0 Articulated telescopic loader Engine Details
(1) Model: China YUCHAI engine or Cummins for option
(2) Engine Type:In-line arrangement, water-cooled, four-cycle diesel,turbocharged Engine
(3) Articulated boom loader Rated Power:95KW
(4) Rated Speed:2400 r/p.min (rpm)
(5) tl3500 telescopic loader Optional Engine:CUMMINS engine(97KW),WEICHAI DEUTZ engine(92KW), YTO engine(92KW)
2.0 Transmission System
Hydraulic converter + gearbox+drive shaft + hub reduction axles
Two-forwards and Two-backwards gears; Maximum speed:30km/h
Electrical Joystick 2 FW 2BW
3.0 Boom loader Bucket
(1) Bucket Capacity: 1.7m³ (Earthwork calculation)
(2) Bucket width: 2280mm
(3) Bucket type:Heavy-duty bolt on teeth
4.0 Overall Dimensions
(1) Overall Length:7500mm
(2) Overall Height:3050mm
(3) Overall Width: 2280mm
5.0 Telehandler Operating Specifications
(1) Steering System: Articulated frame with hydraulic power steering
(2) Telescopic handler Min Turning Radius: 5900mm
(3) Driving System: Hydraulic converter, four wheel drive
(4) Max. lifting height (to bucket top):6500mm
(5) Telescopic Forklift Handler Loader Max. unload height: 5300mm
(6) Max. tilting degree of the boom: 67°
(7) Max. rated load (Boom not extended at all): 3500kg
(8) Teleskoplader Radlader Max. rated load (Boom extended fully): 2000kg
6.0 Brake System
(1) Service Brake:Safer air assist disc brake braking system
(2) Parking Brake:Hand operated(Disc brakes)
7.0 Forload Mulcher Loader Tire
(1) wheel telescopic loader Model:17.5-25 (2)Width: 440mm (3)Diameter: 1280mm
8.0 force telescopic forklift loader Wheelbase: 2430mm
9.0 Forklift Telescopic Loader Track: 1700mm
10.Operation weight:8000KG
